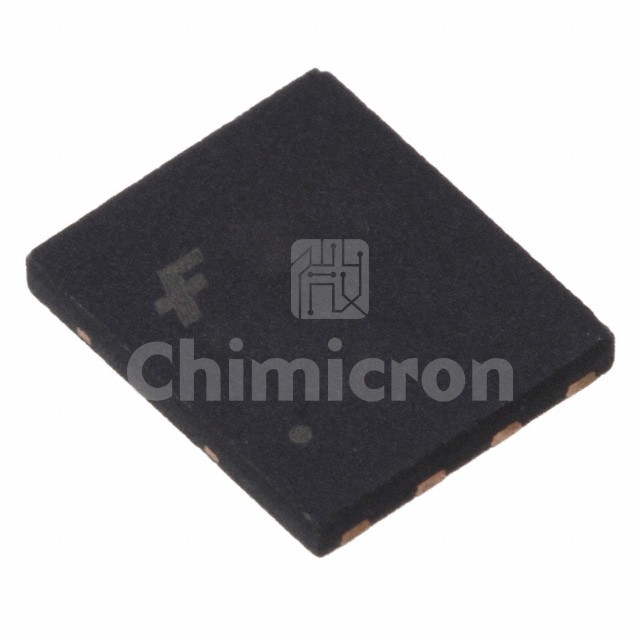

FDMS2672
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 200V 3.7A/20A 8MLP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: UltraFET™
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMS2672 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 100000 pieces of FDMS2672 in stock available now. Submit an inquiry for FDMS2672 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesUltraFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C3.7A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs77mOhm @ 3.7A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs42 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2315 pF @ 100 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 78W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-MLP (5x6), Power56
Package / Case8-PowerWDFN
