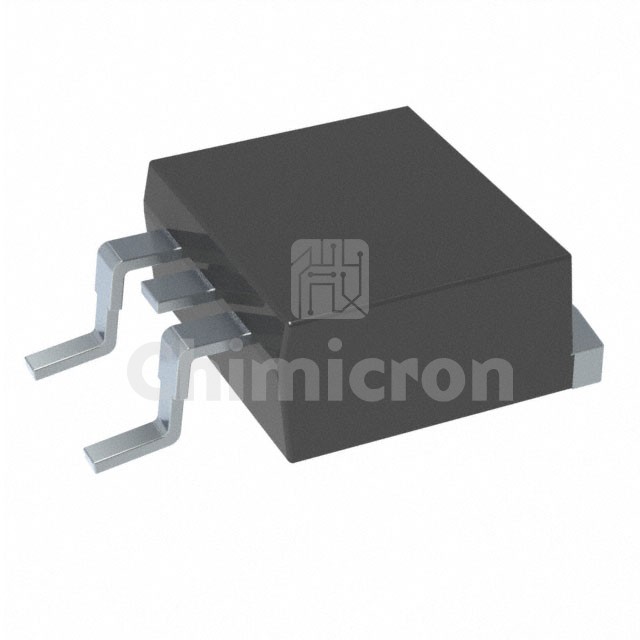

CSD18511KTTT
Manufacturer: Texas
Description: MOSFET N-CH 40V 110A/194A DDPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:1850
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD18511KTTT Texas at chimicron.com. We have 1850 pieces of CSD18511KTTT in stock available now. Submit an inquiry for CSD18511KTTT or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C110A (Ta), 194A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs64 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5940 pF @ 20 V
FET Feature-
Power Dissipation (Max)188W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDDPAK/TO-263-3
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
