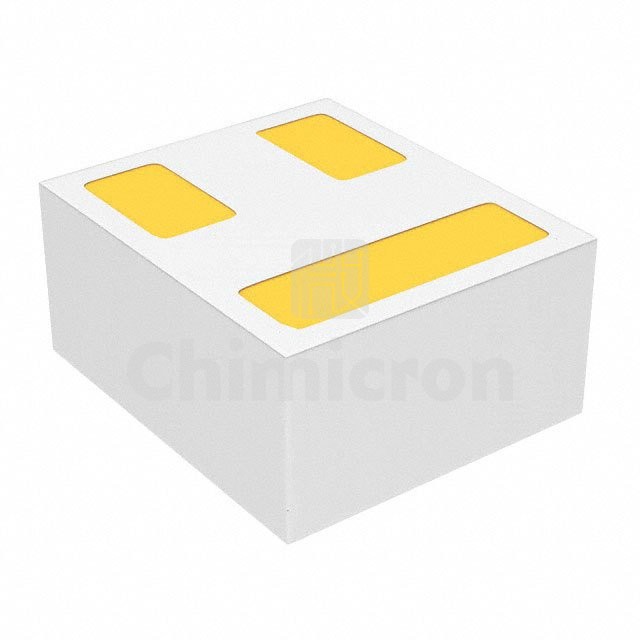

CSD15380F3
Manufacturer: Texas
Description: MOSFET N-CH 20V 500MA 3PICOSTAR
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: FemtoFET™
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD15380F3 Texas at chimicron.com. We have 21000 pieces of CSD15380F3 in stock available now. Submit an inquiry for CSD15380F3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFemtoFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.8V, 8V
Rds On (Max) @ Id, Vgs1190mOhm @ 100mA, 8V
Vgs(th) (Max) @ Id1.35V @ 2.5µA
Gate Charge (Qg) (Max) @ Vgs0.281 nC @ 10 V
Vgs (Max)10V
Input Capacitance (Ciss) (Max) @ Vds10.5 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PICOSTAR
Package / Case3-SMD, No Lead
