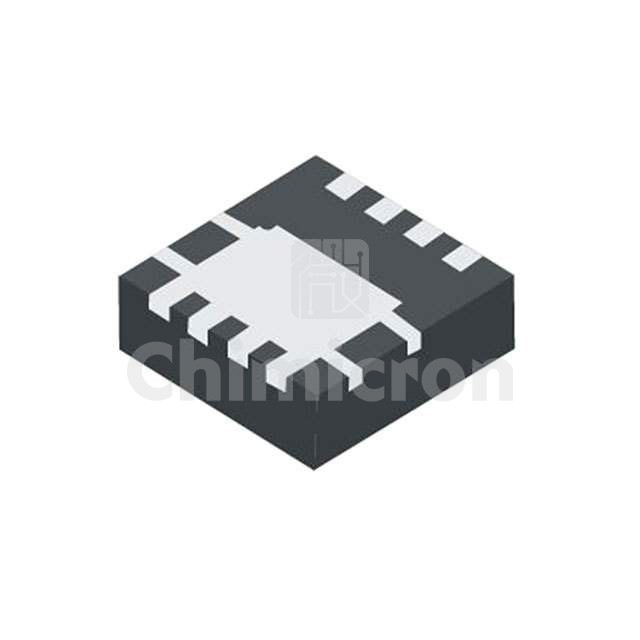

DMN6013LFGQ-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 60V 10.3A PWRDI3333
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMN6013LFGQ-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 100000 pieces of DMN6013LFGQ-7 in stock available now. Submit an inquiry for DMN6013LFGQ-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C10.3A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13mOhm @ 10A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs55.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2577 pF @ 30 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8
Package / Case8-PowerVDFN
