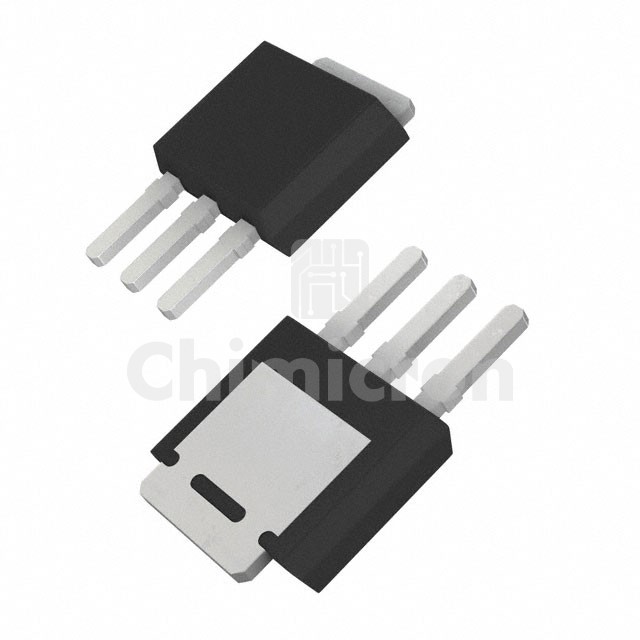

NTD3055L104-1G
Manufacturer: Rochester Electronics
Description: SINGLE N-CHANNEL LOGIC LEVEL POW
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:301
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTD3055L104-1G Rochester Electronics at chimicron.com. We have 301 pieces of NTD3055L104-1G in stock available now. Submit an inquiry for NTD3055L104-1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs104mOhm @ 6A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 5 V
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds440 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.5W (Ta), 48W (Tj)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
