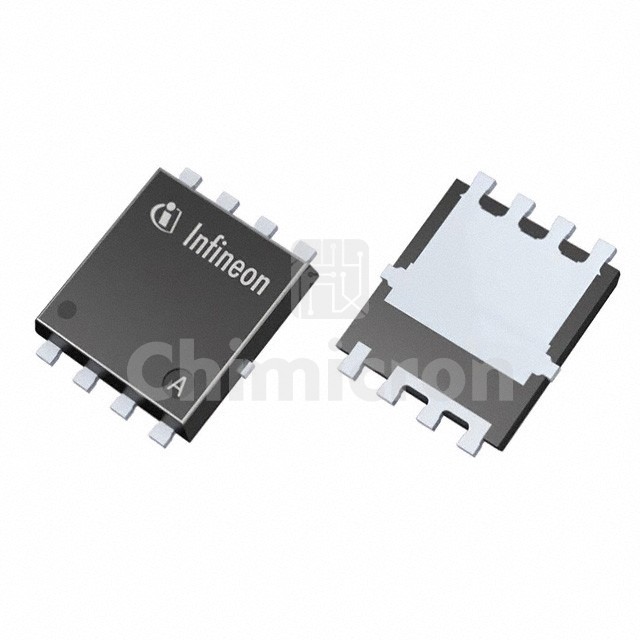

IPC90N04S5L3R3ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 90A 8TDSON-34
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:216000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPC90N04S5L3R3ATMA1 IR (Infineon Technologies) at chimicron.com. We have 216000 pieces of IPC90N04S5L3R3ATMA1 in stock available now. Submit an inquiry for IPC90N04S5L3R3ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.3mOhm @ 45A, 10V
Vgs(th) (Max) @ Id2V @ 23µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds2145 pF @ 25 V
FET Feature-
Power Dissipation (Max)62W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-34
Package / Case8-PowerTDFN
