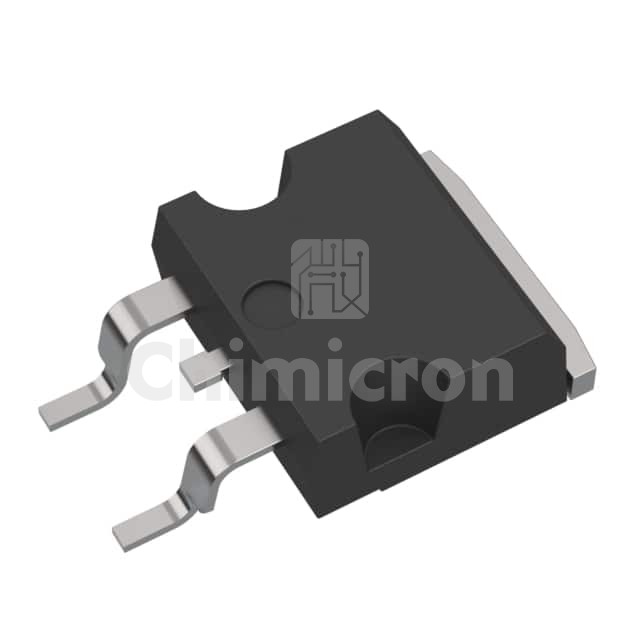

STH240N10F7-2
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 100V 180A H2PAK-2
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™
In Stock:7022000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STH240N10F7-2 STMicroelectronics at chimicron.com. We have 7022000 pieces of STH240N10F7-2 in stock available now. Submit an inquiry for STH240N10F7-2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs160 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11550 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageH2Pak-2
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
