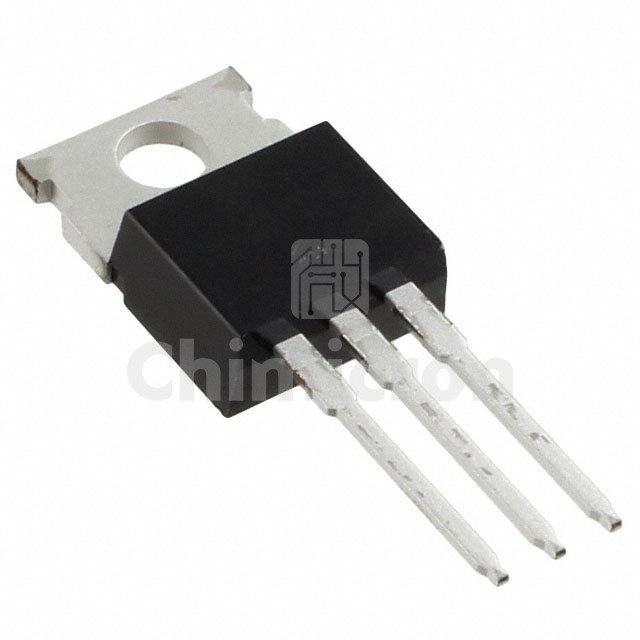

TK40E10N1,S1X
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET N CH 100V 90A TO220
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVIII-H
In Stock:700000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TK40E10N1,S1X Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 700000 pieces of TK40E10N1,S1X in stock available now. Submit an inquiry for TK40E10N1,S1X or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVIII-H
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs8.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs49 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3000 pF @ 50 V
FET Feature-
Power Dissipation (Max)126W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220
Package / CaseTO-220-3
