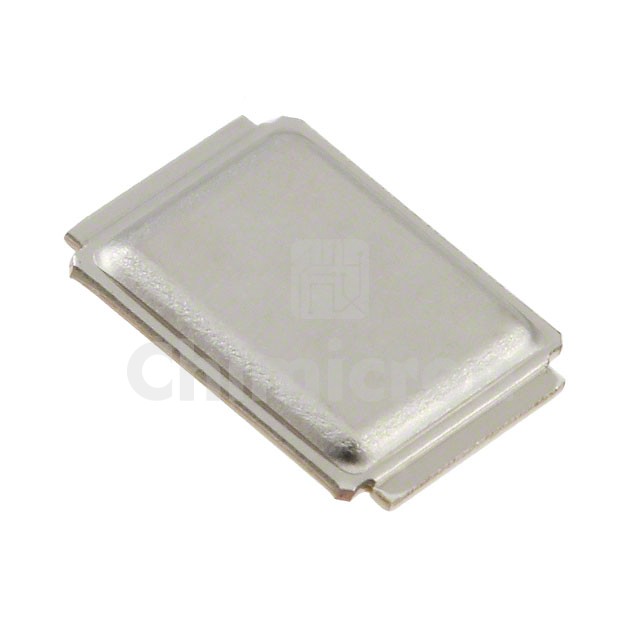

IRF7946TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 90A DIRECTFET MX
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®, StrongIRFET™
In Stock:5060
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF7946TRPBF IR (Infineon Technologies) at chimicron.com. We have 5060 pieces of IRF7946TRPBF in stock available now. Submit an inquiry for IRF7946TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®, StrongIRFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 90A, 10V
Vgs(th) (Max) @ Id3.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs212 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6852 pF @ 25 V
FET Feature-
Power Dissipation (Max)96W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MX
Package / CaseDirectFET™ Isometric MX
