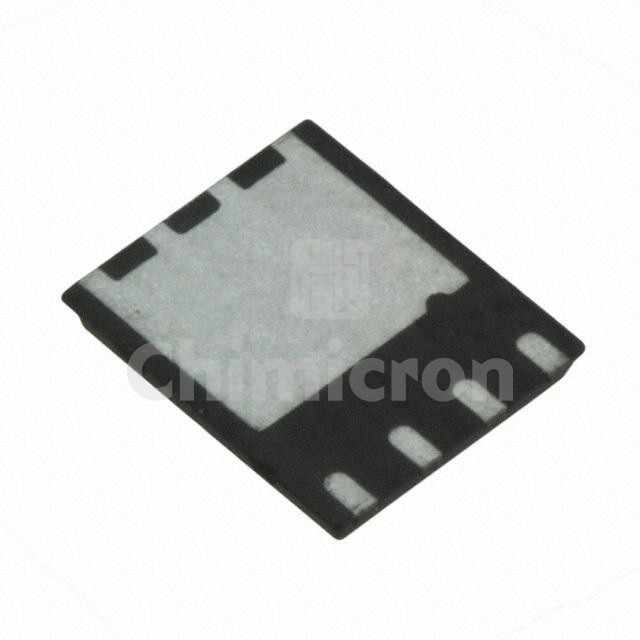

IRFH5406TRPBF
Manufacturer: Rochester Electronics
Description: IRFH5406 - 12V-300V N-CHANNEL PO
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:441076
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFH5406TRPBF Rochester Electronics at chimicron.com. We have 441076 pieces of IRFH5406TRPBF in stock available now. Submit an inquiry for IRFH5406TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C11A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs14.4mOhm @ 24A, 10V
Vgs(th) (Max) @ Id4V @ 50µA
Gate Charge (Qg) (Max) @ Vgs35 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1.256 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 46W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerVDFN
