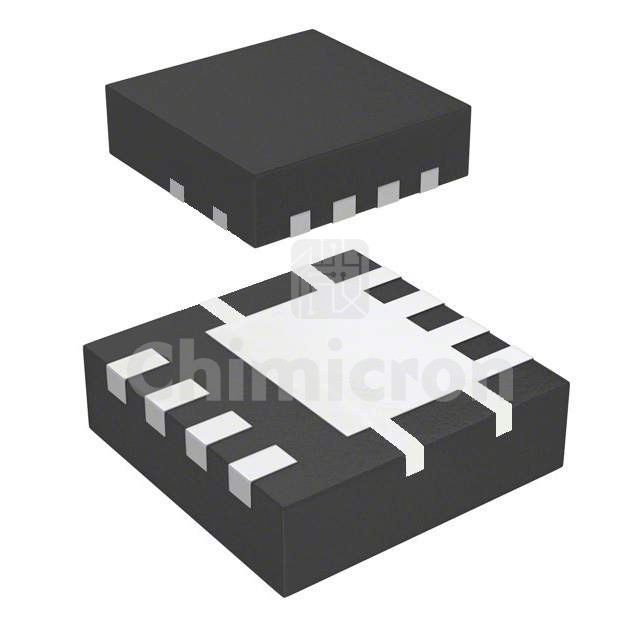

FDMC7570S
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 25V 27A/40A POWER33
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®, SyncFET™
In Stock:880000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC7570S Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 880000 pieces of FDMC7570S in stock available now. Submit an inquiry for FDMC7570S or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®, SyncFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C27A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2mOhm @ 27A, 10V
Vgs(th) (Max) @ Id3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs68 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4410 pF @ 13 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 59W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerTDFN
