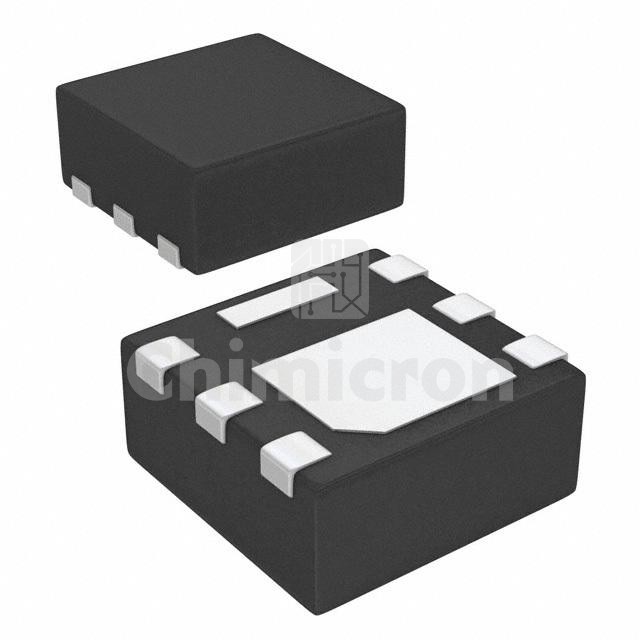

IRLHS2242TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 20V 7.2A/15A 6PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:63000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLHS2242TRPBF IR (Infineon Technologies) at chimicron.com. We have 63000 pieces of IRLHS2242TRPBF in stock available now. Submit an inquiry for IRLHS2242TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C7.2A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs31mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds877 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 9.6W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerVDFN
