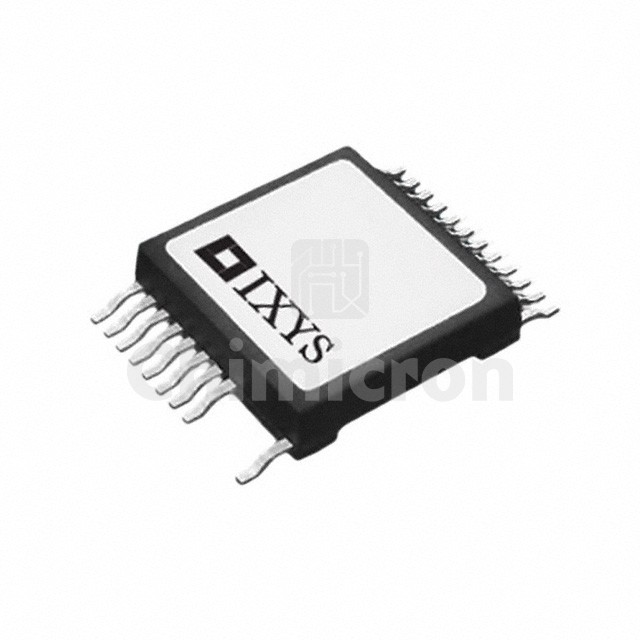

MMIX1F520N075T2
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 75V 500A 24SMPD
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: GigaMOS™, TrenchT2™
In Stock:940
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MMIX1F520N075T2 Wickmann / Littelfuse at chimicron.com. We have 940 pieces of MMIX1F520N075T2 in stock available now. Submit an inquiry for MMIX1F520N075T2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesGigaMOS™, TrenchT2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C500A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs545 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds41000 pF @ 25 V
FET Feature-
Power Dissipation (Max)830W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package24-SMPD
Package / Case24-PowerSMD, 21 Leads
