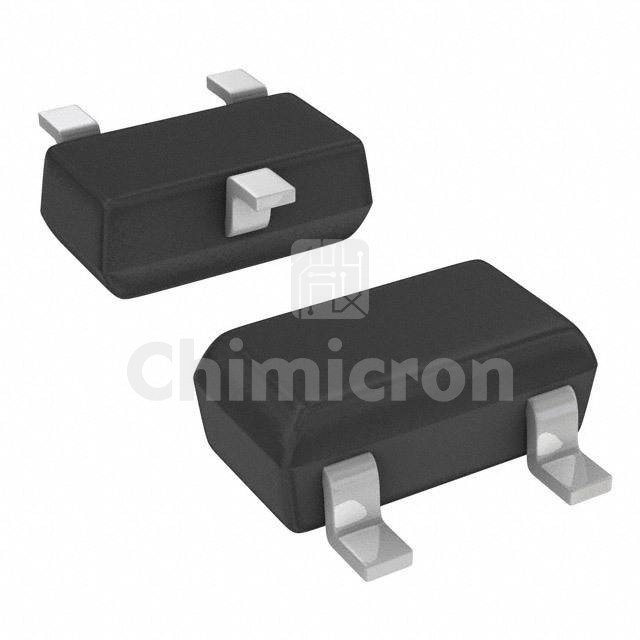

DMP2066LSN-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 20V 4.6A SC59-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:500005
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMP2066LSN-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 500005 pieces of DMP2066LSN-7 in stock available now. Submit an inquiry for DMP2066LSN-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs40mOhm @ 4.6A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.1 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds820 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.25W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-59-3
Package / CaseTO-236-3, SC-59, SOT-23-3
