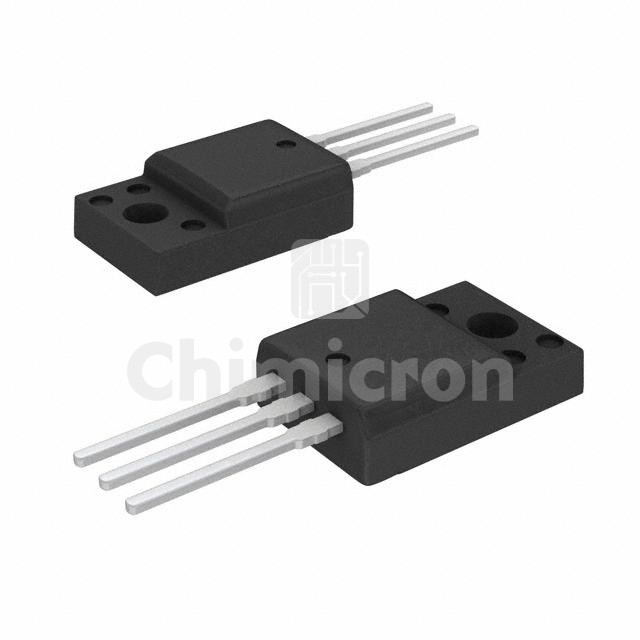

FQPF7P20
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 200V 5.2A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: QFET®
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FQPF7P20 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 500000 pieces of FQPF7P20 in stock available now. Submit an inquiry for FQPF7P20 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesQFET®
PackageTube
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C5.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs690mOhm @ 2.6A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds770 pF @ 25 V
FET Feature-
Power Dissipation (Max)45W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
