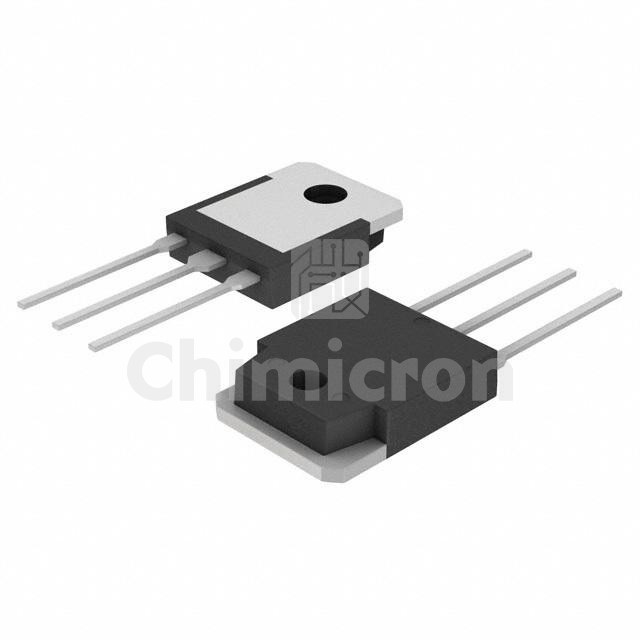

FDA24N40F
FDA24N40F

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 400V 23A TO3PN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: UniFET™
In Stock:400
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDA24N40F Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 400 pieces of FDA24N40F in stock available now. Submit an inquiry for FDA24N40F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesUniFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)400 V
Current - Continuous Drain (Id) @ 25°C23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs190mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs60 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds3030 pF @ 25 V
FET Feature-
Power Dissipation (Max)235W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PN
Package / CaseTO-3P-3, SC-65-3
