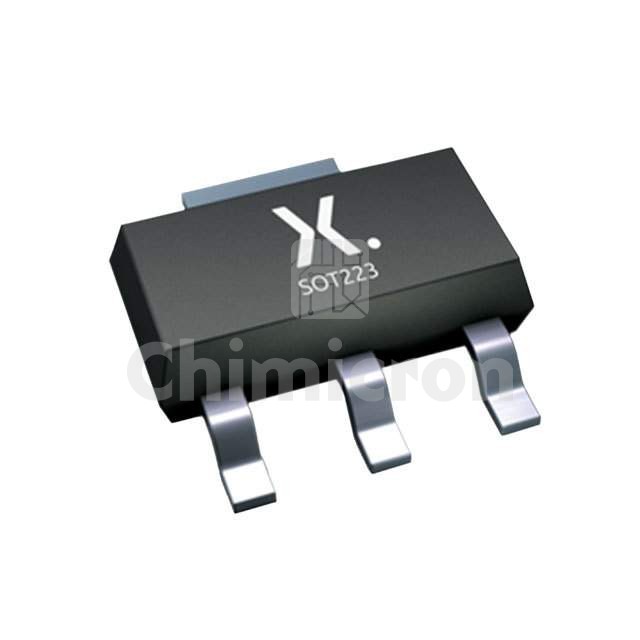

PHT6NQ10T,135
Manufacturer: Nexperia
Description: MOSFET N-CH 100V 3A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchMOS™
In Stock:200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PHT6NQ10T,135 Nexperia at chimicron.com. We have 200000 pieces of PHT6NQ10T,135 in stock available now. Submit an inquiry for PHT6NQ10T,135 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs90mOhm @ 3A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs21 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds633 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 8.3W (Tc)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
