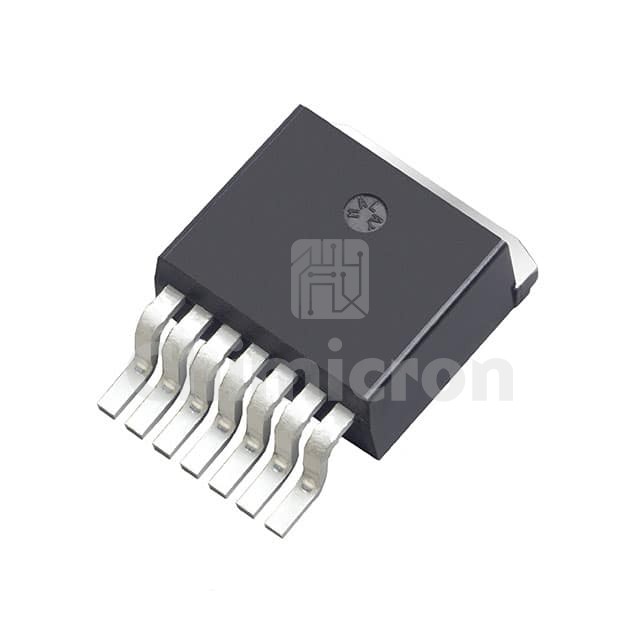

NTBG020N120SC1
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: SICFET N-CH 1200V 8.6A/98A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:20700
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTBG020N120SC1 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 20700 pieces of NTBG020N120SC1 in stock available now. Submit an inquiry for NTBG020N120SC1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C8.6A (Ta), 98A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs28mOhm @ 60A, 20V
Vgs(th) (Max) @ Id4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs220 nC @ 20 V
Vgs (Max)+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds2943 pF @ 800 V
FET Feature-
Power Dissipation (Max)3.7W (Ta), 468W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
