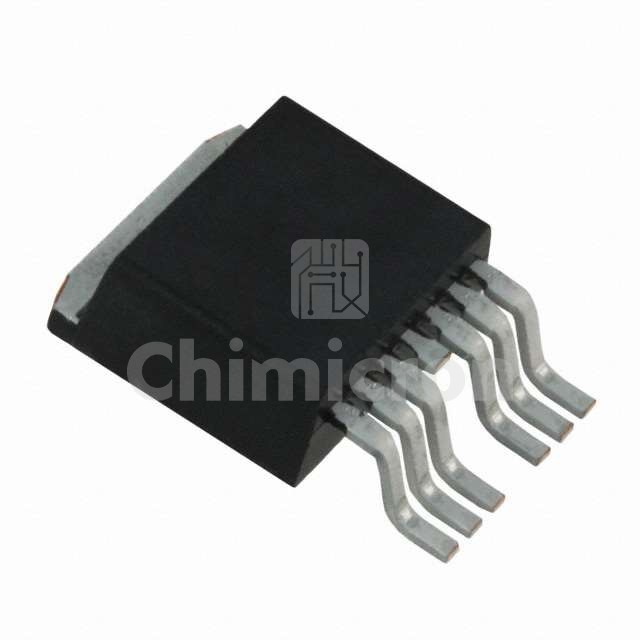

IPB180P04P4L02ATMA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 40V 180A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS®-P2
In Stock:150000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPB180P04P4L02ATMA2 IR (Infineon Technologies) at chimicron.com. We have 150000 pieces of IPB180P04P4L02ATMA2 in stock available now. Submit an inquiry for IPB180P04P4L02ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS®-P2
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.2V @ 410µA
Gate Charge (Qg) (Max) @ Vgs286 nC @ 10 V
Vgs (Max)+5V, -16V
Input Capacitance (Ciss) (Max) @ Vds18700 pF @ 25 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
