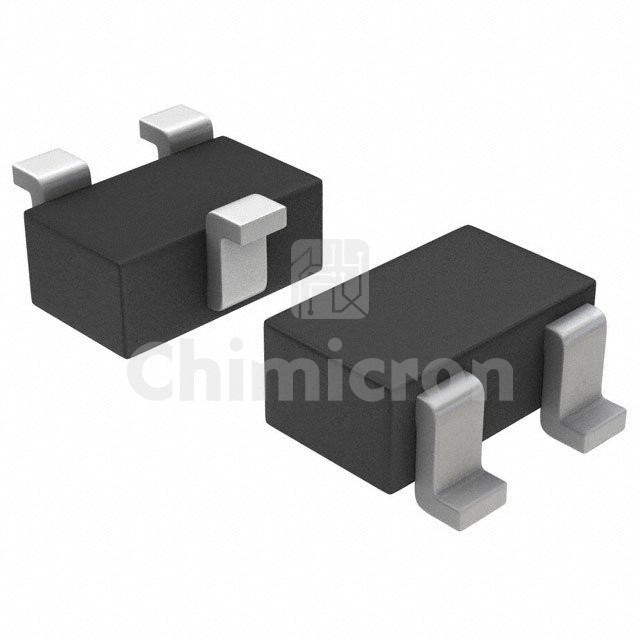

BSS138W
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 50V 210MA SC70
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:59430
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSS138W Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 59430 pieces of BSS138W in stock available now. Submit an inquiry for BSS138W or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C210mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5Ohm @ 220mA, 10V
Vgs(th) (Max) @ Id1.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs1.1 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds38 pF @ 25 V
FET Feature-
Power Dissipation (Max)340mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70 (SOT323)
Package / CaseSC-70, SOT-323
