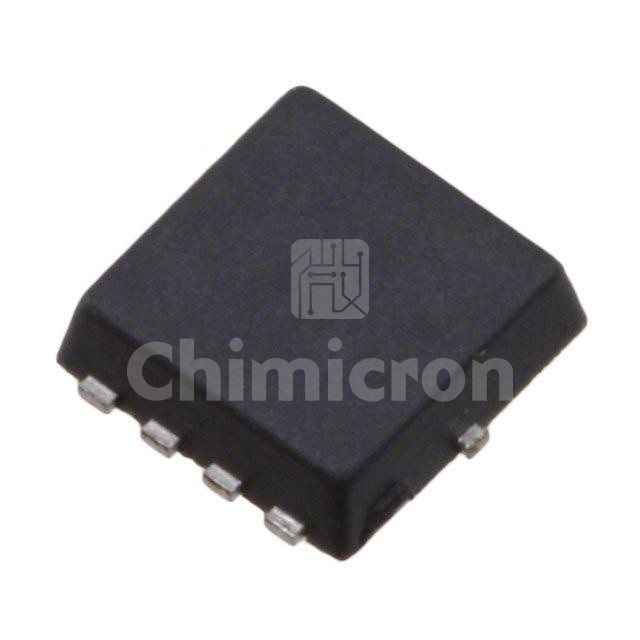

TPN3300ANH,LQ
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET N-CH 100V 9.4A 8TSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVIII-H
In Stock:1803000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPN3300ANH,LQ Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 1803000 pieces of TPN3300ANH,LQ in stock available now. Submit an inquiry for TPN3300ANH,LQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVIII-H
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs33mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds880 pF @ 50 V
FET Feature-
Power Dissipation (Max)700mW (Ta), 27W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-TSON Advance (3.3x3.3)
Package / Case8-PowerVDFN
