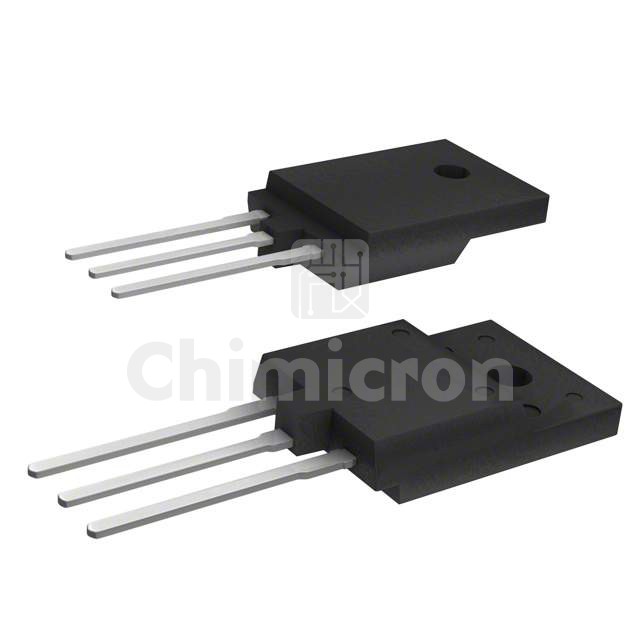

2SK3747-1E
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 1500V 2A TO3PF-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:5418
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2SK3747-1E Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 5418 pieces of 2SK3747-1E in stock available now. Submit an inquiry for 2SK3747-1E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs13Ohm @ 1A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs37.5 nC @ 10 V
Vgs (Max)±35V
Input Capacitance (Ciss) (Max) @ Vds380 pF @ 30 V
FET Feature-
Power Dissipation (Max)3W (Ta), 50W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PF-3
Package / CaseSC-94
