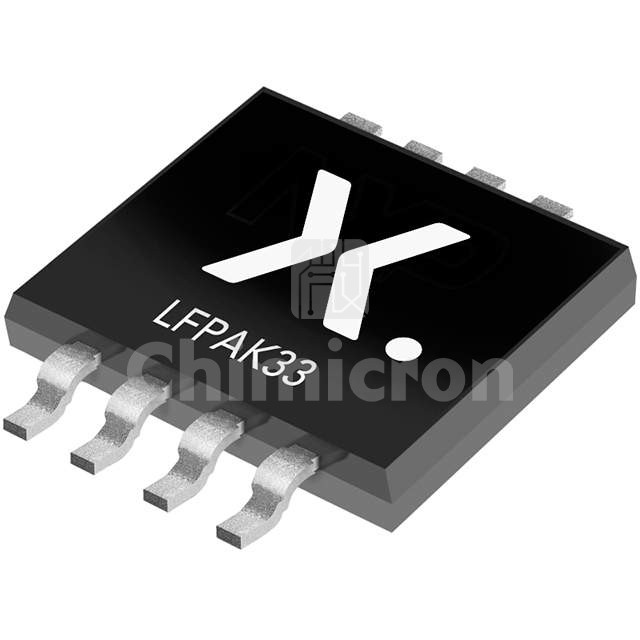

BUK9M156-100EX
Manufacturer: Nexperia
Description: MOSFET N-CH 100V 9.3A LFPAK33
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchMOS™
In Stock:131250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BUK9M156-100EX Nexperia at chimicron.com. We have 131250 pieces of BUK9M156-100EX in stock available now. Submit an inquiry for BUK9M156-100EX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C9.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs150mOhm @ 5A, 10V
Vgs(th) (Max) @ Id2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs7.4 nC @ 5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds695 pF @ 25 V
FET Feature-
Power Dissipation (Max)36W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33
