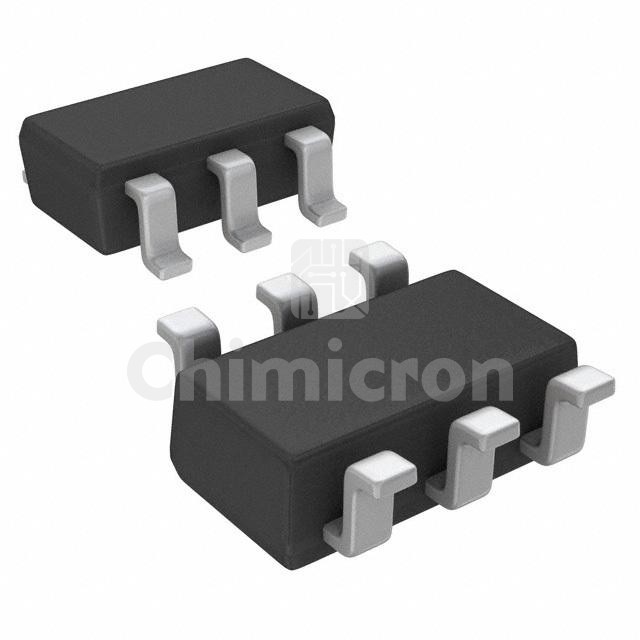

CPH6341-TL-W
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 30V 5A 6CPH
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CPH6341-TL-W Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 200000 pieces of CPH6341-TL-W in stock available now. Submit an inquiry for CPH6341-TL-W or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs59mOhm @ 3A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs10 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds430 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.6W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-CPH
Package / CaseSOT-23-6 Thin, TSOT-23-6
