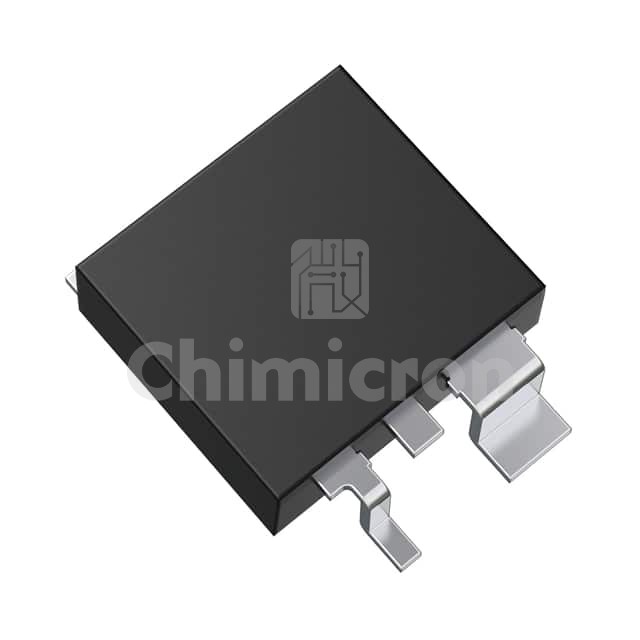

TK160F10N1L,LQ
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: MOSFET N-CH 100V 160A TO220SM
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSVIII-H
In Stock:2000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TK160F10N1L,LQ Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 2000000 pieces of TK160F10N1L,LQ in stock available now. Submit an inquiry for TK160F10N1L,LQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSVIII-H
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C160A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs2.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs122 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10100 pF @ 10 V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device PackageTO-220SM(W)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
