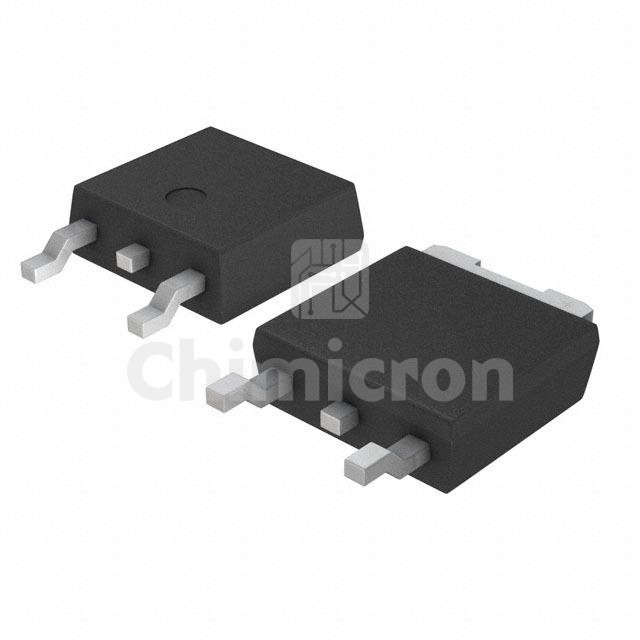

IRLR014PBF
IRLR014PBF

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 60V 7.7A DPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:130000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLR014PBF Vishay / Siliconix at chimicron.com. We have 130000 pieces of IRLR014PBF in stock available now. Submit an inquiry for IRLR014PBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C7.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 5V
Rds On (Max) @ Id, Vgs200mOhm @ 4.6A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.4 nC @ 5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds400 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD-Pak
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
