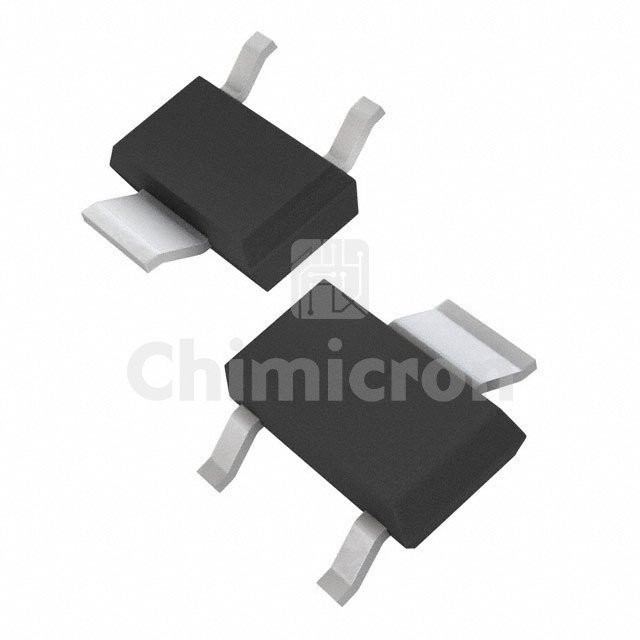

IPN60R3K4CEATMA1
IPN60R3K4CEATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 600V 2.6A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™
In Stock:523616
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPN60R3K4CEATMA1 IR (Infineon Technologies) at chimicron.com. We have 523616 pieces of IPN60R3K4CEATMA1 in stock available now. Submit an inquiry for IPN60R3K4CEATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C2.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs4.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds93 pF @ 100 V
FET FeatureSuper Junction
Power Dissipation (Max)5W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseSOT-223-3
