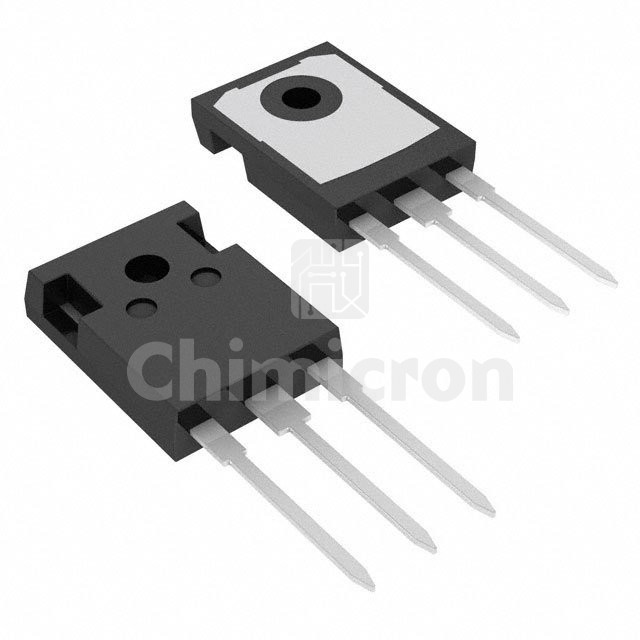

FDH055N15A
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 150V 158A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDH055N15A Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 5000 pieces of FDH055N15A in stock available now. Submit an inquiry for FDH055N15A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C158A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs5.9mOhm @ 120A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs92 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds9445 pF @ 75 V
FET Feature-
Power Dissipation (Max)429W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
Related Parts for FDH055N15A
