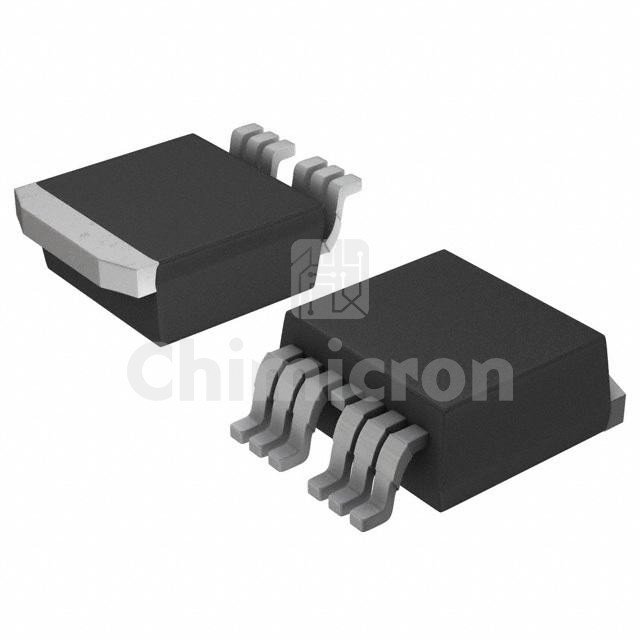

IRLS3036-7PPBF
IRLS3036-7PPBF

Manufacturer: Rochester Electronics

Description: IRLS3036 - HEXFET POWER MOSFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:3300
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLS3036-7PPBF Rochester Electronics at chimicron.com. We have 3300 pieces of IRLS3036-7PPBF in stock available now. Submit an inquiry for IRLS3036-7PPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.9mOhm @ 180A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs160 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds11.27 pF @ 50 V
FET Feature-
Power Dissipation (Max)380W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK (7-Lead)
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
