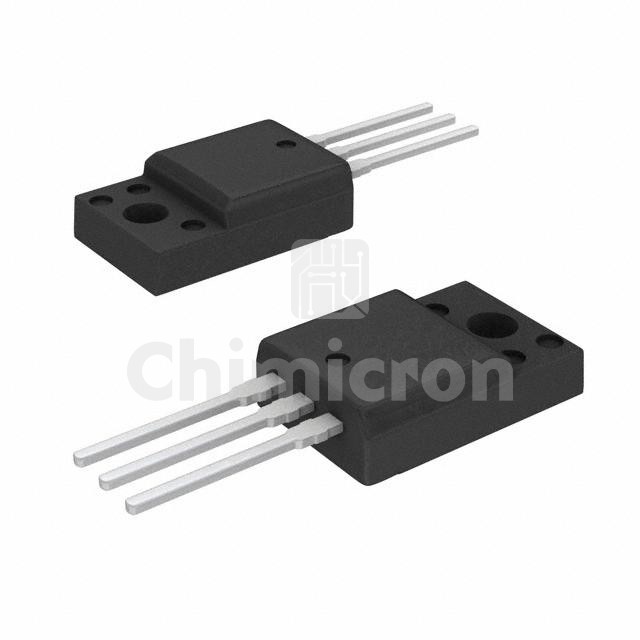

FDPF12N50T
FDPF12N50T

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 500V 11.5A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: UniFET™
In Stock:17250
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDPF12N50T Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 17250 pieces of FDPF12N50T in stock available now. Submit an inquiry for FDPF12N50T or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesUniFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs650mOhm @ 6A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1315 pF @ 25 V
FET Feature-
Power Dissipation (Max)42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
