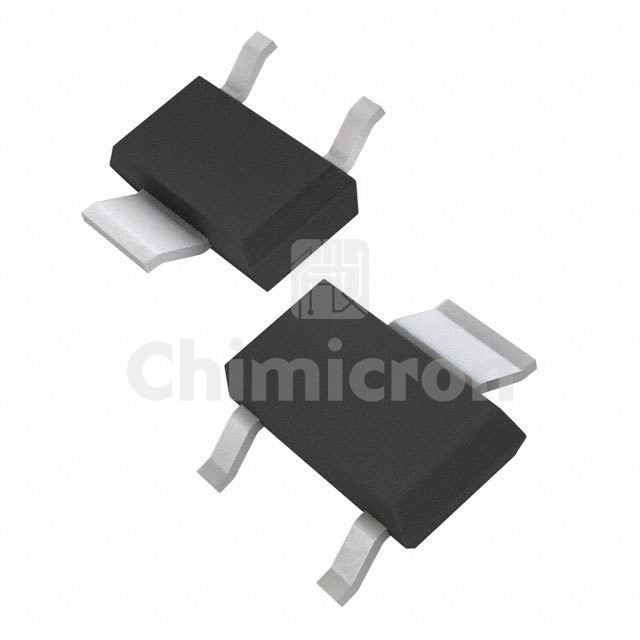

IPN50R650CEATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 500V 9A SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ CE
In Stock:50400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPN50R650CEATMA1 IR (Infineon Technologies) at chimicron.com. We have 50400 pieces of IPN50R650CEATMA1 in stock available now. Submit an inquiry for IPN50R650CEATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ CE
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)13V
Rds On (Max) @ Id, Vgs650mOhm @ 1.8A, 13V
Vgs(th) (Max) @ Id3.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds342 pF @ 100 V
FET Feature-
Power Dissipation (Max)5W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT223
Package / CaseSOT-223-3
