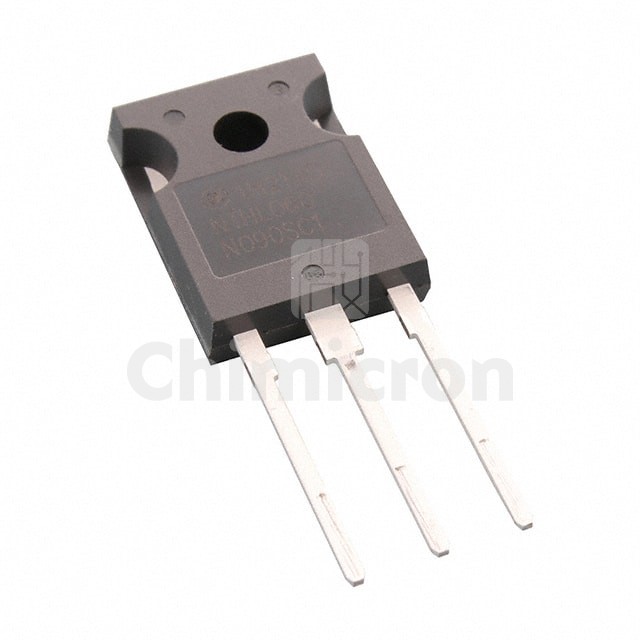

NTHL060N090SC1
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: SICFET N-CH 900V 46A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:35837
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTHL060N090SC1 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 35837 pieces of NTHL060N090SC1 in stock available now. Submit an inquiry for NTHL060N090SC1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs84mOhm @ 20A, 15V
Vgs(th) (Max) @ Id4.3V @ 5mA
Gate Charge (Qg) (Max) @ Vgs87 nC @ 15 V
Vgs (Max)+19V, -10V
Input Capacitance (Ciss) (Max) @ Vds1770 pF @ 450 V
FET Feature-
Power Dissipation (Max)221W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3 Variant
