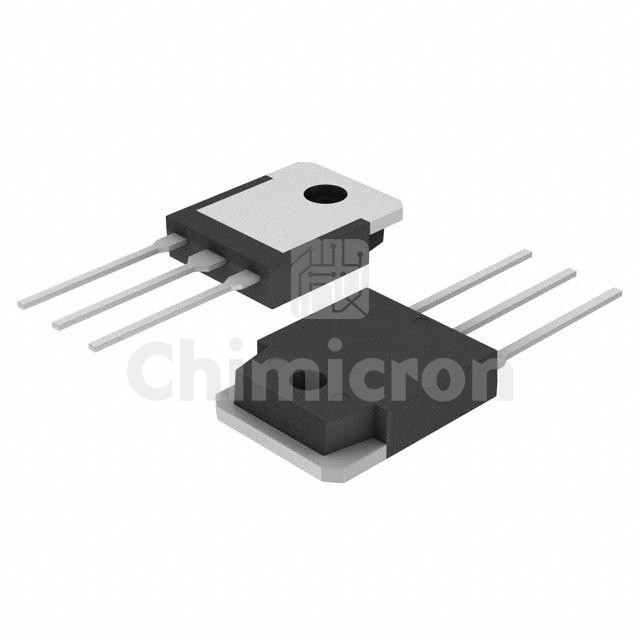

FDA032N08
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 75V 120A TO3PN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:10362
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDA032N08 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 10362 pieces of FDA032N08 in stock available now. Submit an inquiry for FDA032N08 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3.2mOhm @ 75A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs220 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds15160 pF @ 25 V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PN
Package / CaseTO-3P-3, SC-65-3
