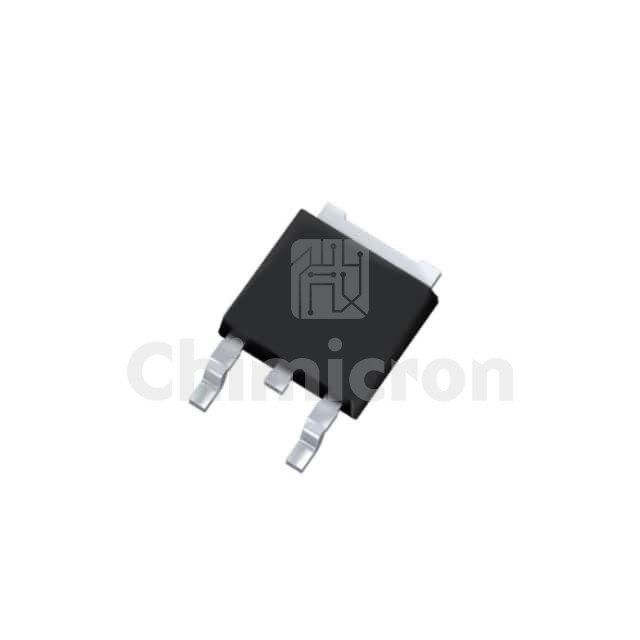

IPD70P04P409ATMA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 40V 73A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS®-P2
In Stock:250000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD70P04P409ATMA2 IR (Infineon Technologies) at chimicron.com. We have 250000 pieces of IPD70P04P409ATMA2 in stock available now. Submit an inquiry for IPD70P04P409ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS®-P2
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C73A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs8.9mOhm @ 70A, 10V
Vgs(th) (Max) @ Id4V @ 120µA
Gate Charge (Qg) (Max) @ Vgs70 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4810 pF @ 25 V
FET Feature-
Power Dissipation (Max)75W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-313
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
