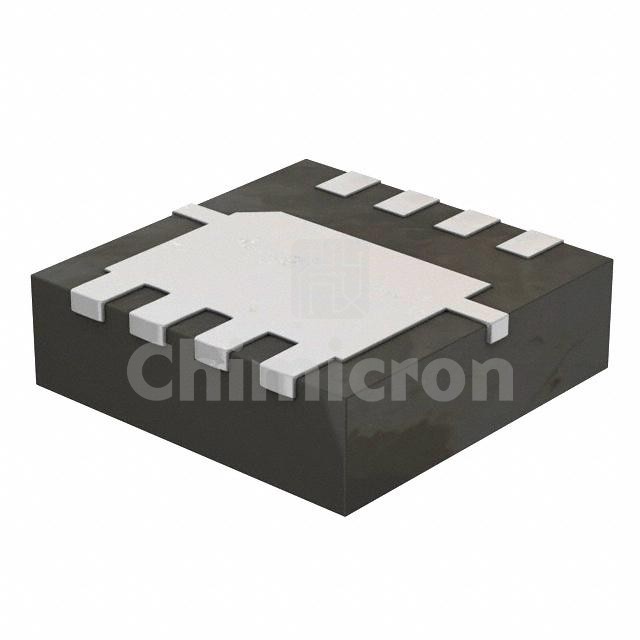

CSD25401Q3
Manufacturer: Rochester Electronics
Description: MOSFET P-CH 20V 14A/60A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:840
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD25401Q3 Rochester Electronics at chimicron.com. We have 840 pieces of CSD25401Q3 in stock available now. Submit an inquiry for CSD25401Q3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageBulk
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs11.7mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.3 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1.4 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.8W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (3.3x3.3)
Package / Case8-PowerTDFN
