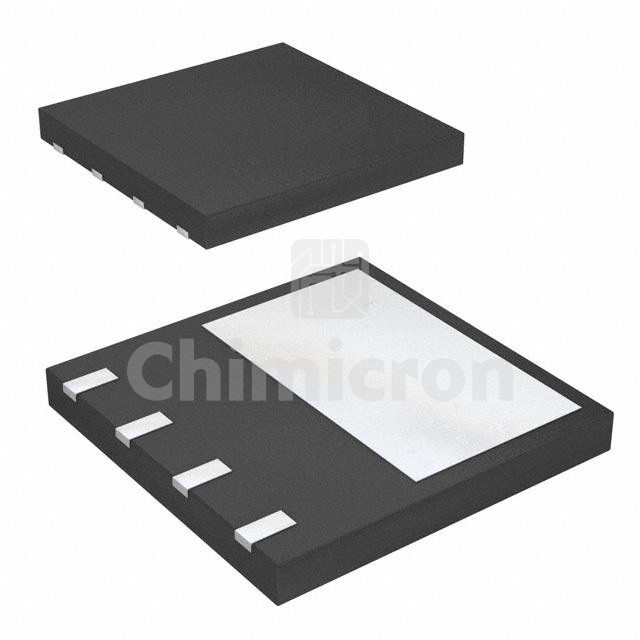

STL26N60DM6
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 15A PWRFLAT HV
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™ DM6
In Stock:5056
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STL26N60DM6 STMicroelectronics at chimicron.com. We have 5056 pieces of STL26N60DM6 in stock available now. Submit an inquiry for STL26N60DM6 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™ DM6
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs215mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds940 pF @ 100 V
FET Feature-
Power Dissipation (Max)110W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
