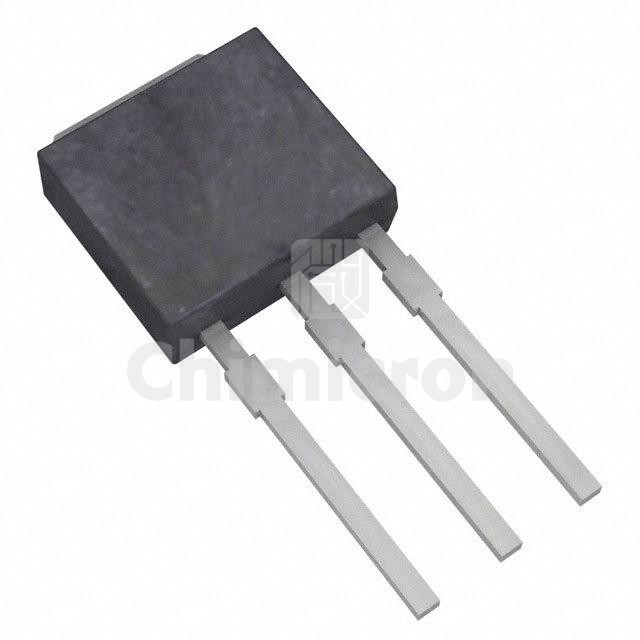

RFD3055LE
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 60V 11A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RFD3055LE Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2500 pieces of RFD3055LE in stock available now. Submit an inquiry for RFD3055LE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs107mOhm @ 8A, 5V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11.3 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds350 pF @ 25 V
FET Feature-
Power Dissipation (Max)38W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
