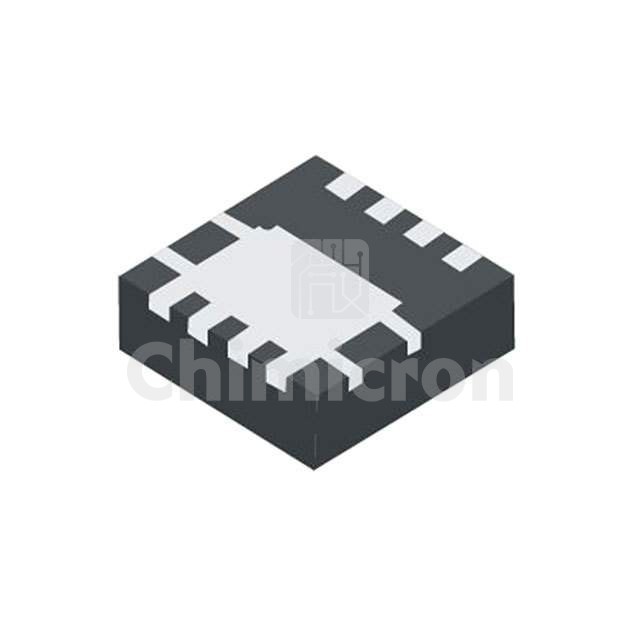

DMN7022LFG-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 75V 7.8A PWRDI3333-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:974
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMN7022LFG-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 974 pieces of DMN7022LFG-7 in stock available now. Submit an inquiry for DMN7022LFG-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C7.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs22mOhm @ 7.2A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs56.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2737 pF @ 35 V
FET Feature-
Power Dissipation (Max)900mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8
Package / Case8-PowerVDFN
