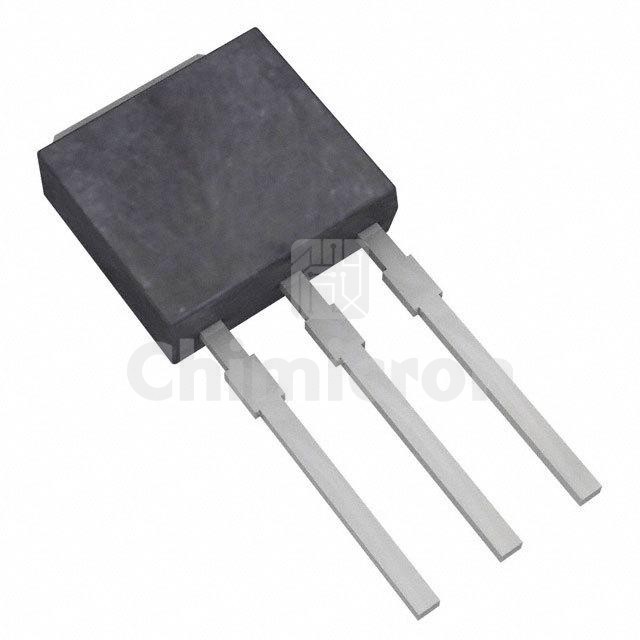

FQU13N10LTU
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 100V 10A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: QFET®
In Stock:200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FQU13N10LTU Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 200000 pieces of FQU13N10LTU in stock available now. Submit an inquiry for FQU13N10LTU or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesQFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs180mOhm @ 5A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds520 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 40W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
