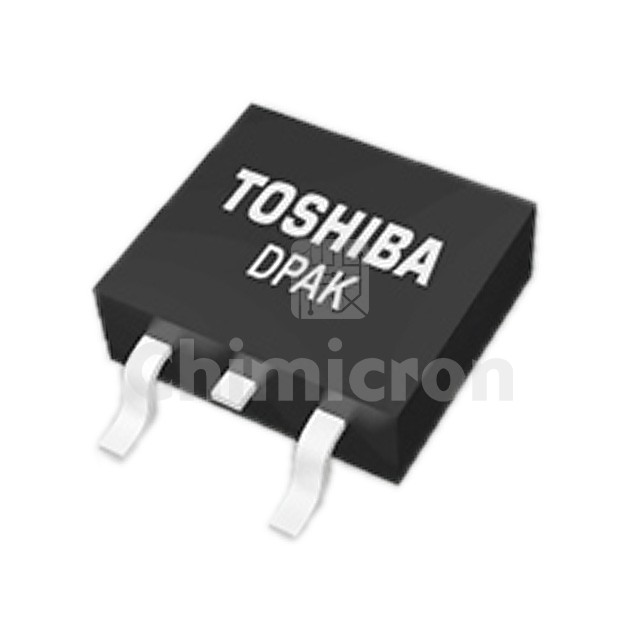

TK3R1P04PL,RQ
TK3R1P04PL,RQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CHANNEL 40V 58A DPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: U-MOSIX-H
In Stock:7035
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TK3R1P04PL,RQ Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 7035 pieces of TK3R1P04PL,RQ in stock available now. Submit an inquiry for TK3R1P04PL,RQ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesU-MOSIX-H
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.1mOhm @ 29A, 10V
Vgs(th) (Max) @ Id2.4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs60 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4670 pF @ 20 V
FET Feature-
Power Dissipation (Max)87W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
