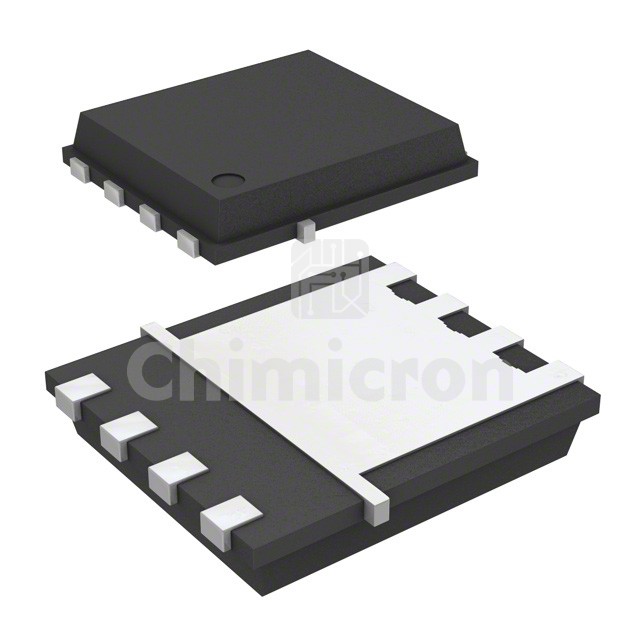

CSD18503Q5A
CSD18503Q5A

Manufacturer: Texas

Description: MOSFET N-CH 40V 19A/100A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:5406000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD18503Q5A Texas at chimicron.com. We have 5406000 pieces of CSD18503Q5A in stock available now. Submit an inquiry for CSD18503Q5A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C19A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.3mOhm @ 22A, 10V
Vgs(th) (Max) @ Id2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs32 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2640 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 120W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSONP (5x6)
Package / Case8-PowerTDFN
