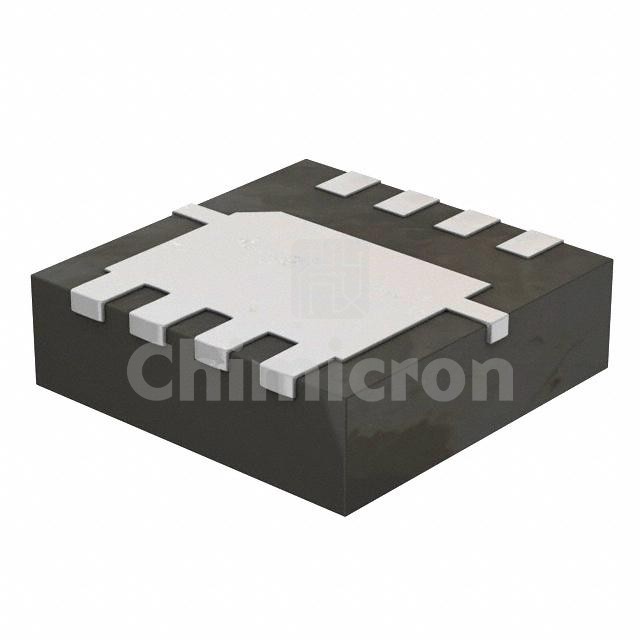

CSD25402Q3A
CSD25402Q3A

Manufacturer: Texas

Description: MOSFET P-CH 20V 76A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:3022226
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD25402Q3A Texas at chimicron.com. We have 3022226 pieces of CSD25402Q3A in stock available now. Submit an inquiry for CSD25402Q3A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.7 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1790 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.8W (Ta), 69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON (3.3x3.3)
Package / Case8-PowerVDFN
