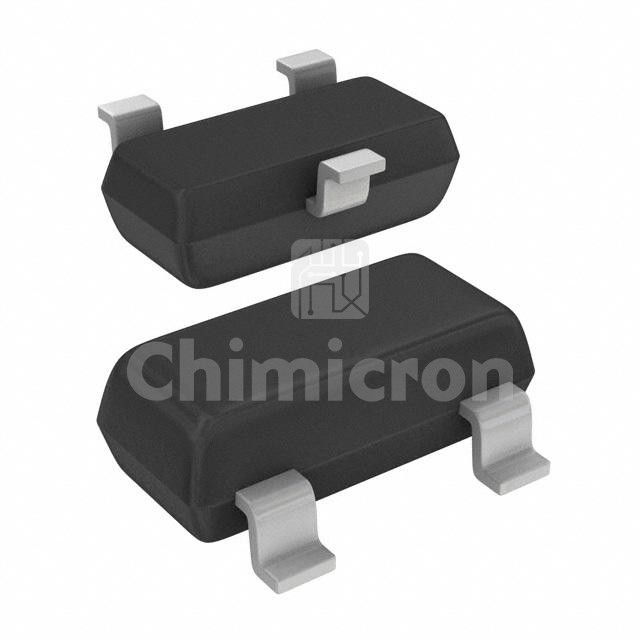

PMV56XN,215
Manufacturer: Rochester Electronics
Description: MOSFET N-CH 20V 3.76A TO236AB
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchMOS™
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMV56XN,215 Rochester Electronics at chimicron.com. We have 10000 pieces of PMV56XN,215 in stock available now. Submit an inquiry for PMV56XN,215 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchMOS™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs85mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id650mV @ 1mA
Gate Charge (Qg) (Max) @ Vgs5.4 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds230 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.92W (Tc)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-236AB
Package / CaseTO-236-3, SC-59, SOT-23-3
Related Parts for PMV56XN,215
