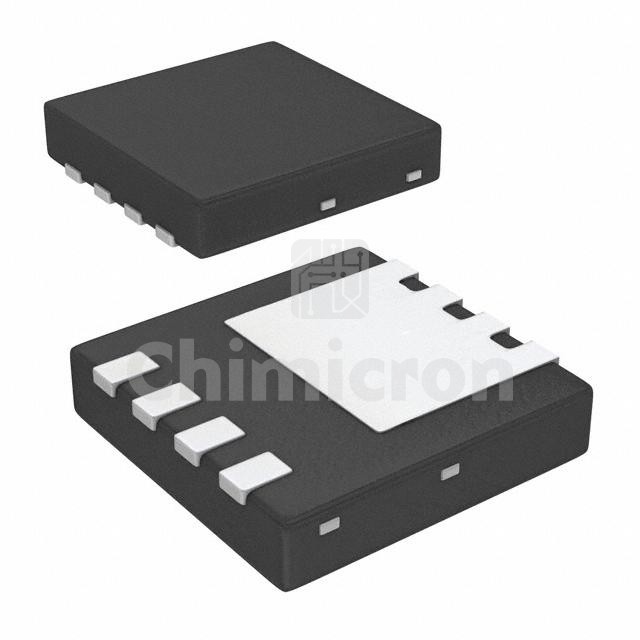

FDMC86012
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 30V 23A POWER33
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:6300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC86012 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 6300 pieces of FDMC86012 in stock available now. Submit an inquiry for FDMC86012 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C23A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs2.7mOhm @ 23A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds5075 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 54W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower33
Package / Case8-PowerWDFN
