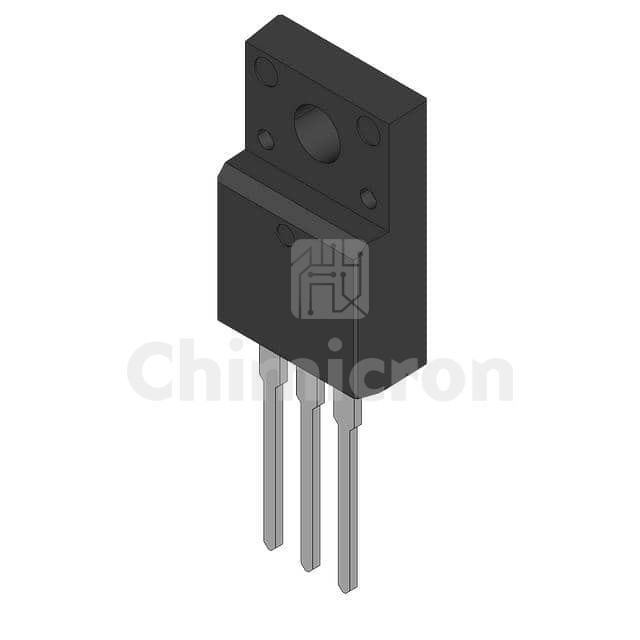

IRFB23N20DPBF
Manufacturer: Rochester Electronics
Description: SMPS HEXFET POWER MOSFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:140000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFB23N20DPBF Rochester Electronics at chimicron.com. We have 140000 pieces of IRFB23N20DPBF in stock available now. Submit an inquiry for IRFB23N20DPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs100mOhm @ 14A, 10V
Vgs(th) (Max) @ Id5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs86 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1.96 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 170W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
