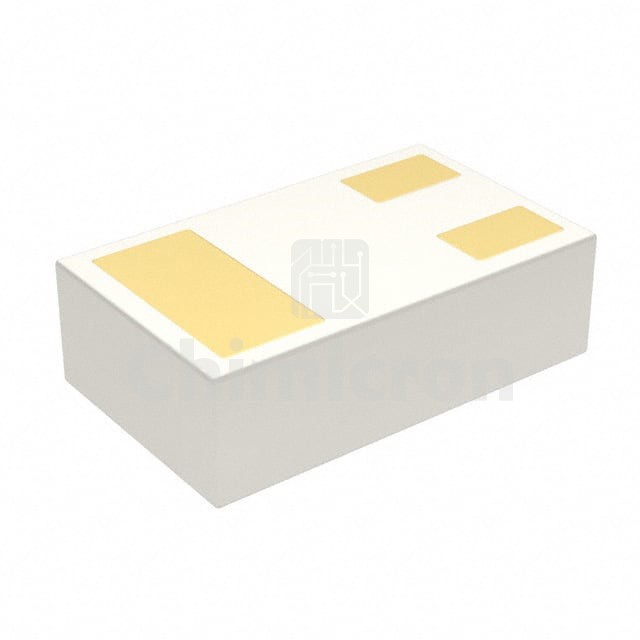

CSD23382F4
Manufacturer: Texas
Description: MOSFET P-CH 12V 3.5A 3PICOSTAR
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: FemtoFET™
In Stock:925403
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD23382F4 Texas at chimicron.com. We have 925403 pieces of CSD23382F4 in stock available now. Submit an inquiry for CSD23382F4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFemtoFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs76mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.35 nC @ 6 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds235 pF @ 6 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PICOSTAR
Package / Case3-XFDFN
