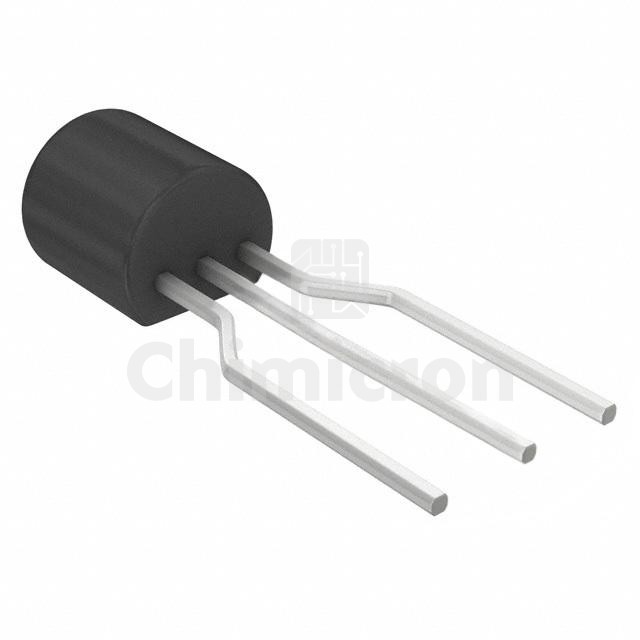

STQ1NC45R-AP
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 450V 500MA TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH™
In Stock:525
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STQ1NC45R-AP STMicroelectronics at chimicron.com. We have 525 pieces of STQ1NC45R-AP in stock available now. Submit an inquiry for STQ1NC45R-AP or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH™
PackageCut Tape (CT)Tape & Box (TB)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)450 V
Current - Continuous Drain (Id) @ 25°C500mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds160 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.1W (Tc)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-92-3
Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
