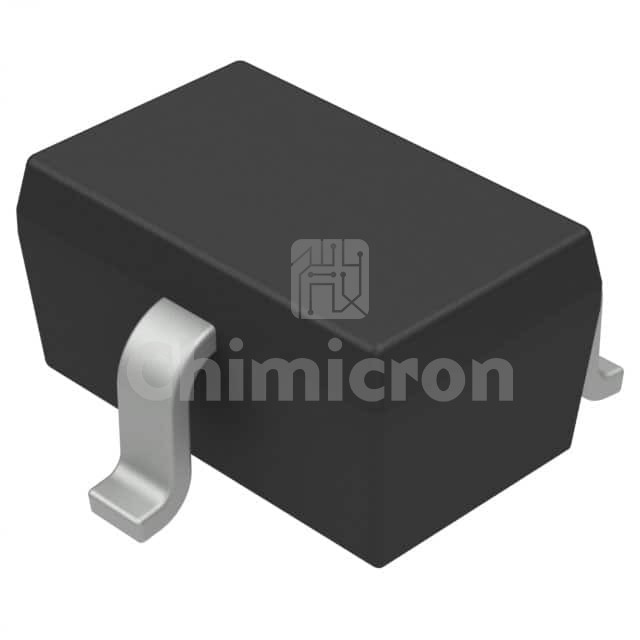

PMF370XN,115
Manufacturer: Nexperia
Description: MOSFET N-CH 30V 870MA SOT323
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchMOS™
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMF370XN,115 Nexperia at chimicron.com. We have 21000 pieces of PMF370XN,115 in stock available now. Submit an inquiry for PMF370XN,115 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C870mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V
Rds On (Max) @ Id, Vgs440mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.65 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds37 pF @ 25 V
FET Feature-
Power Dissipation (Max)560mW (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
