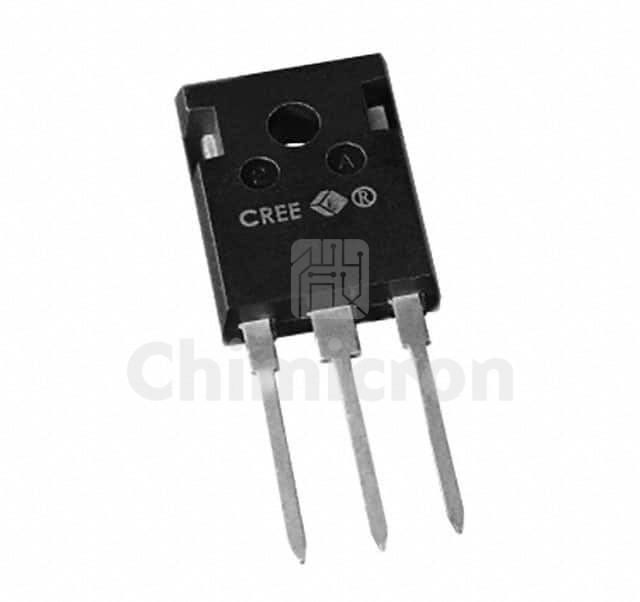

C3M0075120D
Manufacturer: Wolfspeed - a Cree company
Description: SICFET N-CH 1200V 30A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: C3M™
In Stock:1271
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the C3M0075120D Wolfspeed - a Cree company at chimicron.com. We have 1271 pieces of C3M0075120D in stock available now. Submit an inquiry for C3M0075120D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesC3M™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)15V
Rds On (Max) @ Id, Vgs90mOhm @ 20A, 15V
Vgs(th) (Max) @ Id4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs54 nC @ 15 V
Vgs (Max)+19V, -8V
Input Capacitance (Ciss) (Max) @ Vds1350 pF @ 1000 V
FET Feature-
Power Dissipation (Max)113.6W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
