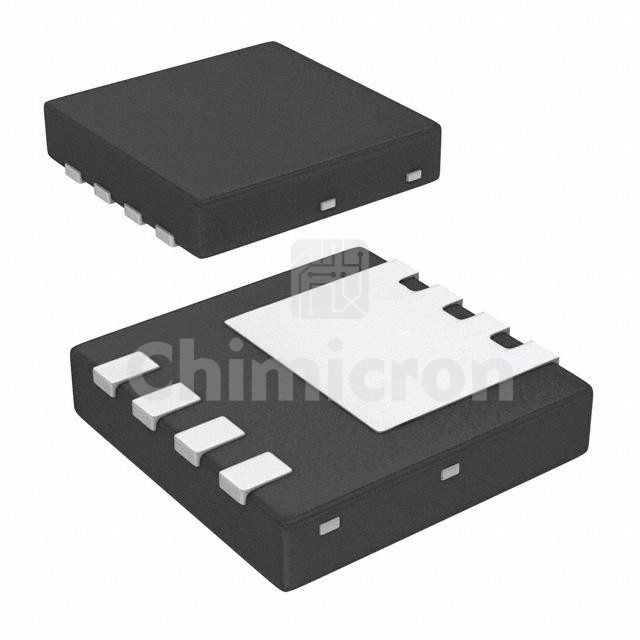

FDMC6686P
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 20V 18A/56A 8PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:1400000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC6686P Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1400000 pieces of FDMC6686P in stock available now. Submit an inquiry for FDMC6686P or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C18A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs4mOhm @ 18A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs122 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds13200 pF @ 10 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 40W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (3.3x3.3), Power33
Package / Case8-PowerWDFN
